Welcome Home: How to Repair a Boot Scraper by Welding

A boot scraper is a humble but essential tool. Because they are designed to be scraped, kicked, and stood upon, the high-leverage points—where the horizontal blade meets the vertical posts—eventually fatigue and snap.

Since most boot scrapers are made of heavy wrought iron or mild steel, they are incredibly satisfying to repair. A proper weld will make the scraper significantly stronger than the original factory version.

Phase 1: Determine Your Material

• Wrought Iron / Mild Steel: The most common. It’s heavy, magnetic, and welds easily with any process.
• Cast Iron: Some decorative vintage scrapers are cast. Warning: If the break looks "grainy" or "salty" inside, it is cast iron. You must pre-heat the metal with a torch and use a Nickel-rich rod to prevent it from cracking as it cools.
• Stainless Steel: Found in modern, high-end homes. Non-magnetic. Requires 308L filler metal.

Phase 2: The Repair Toolkit

• Welder: A MIG welder is great for a clean look, but a Stick welder (using 6011 or 7018 rods) is actually superior here because it can burn through the years of mud, salt, and rust embedded in the metal.
• Angle Grinder: With a wire wheel for deep cleaning and a grinding disc for "V-grooving."
• Bench Vise: Essential to hold the vertical posts upright while you attach the horizontal blade.
• Magnetic Square: To ensure the blade is perfectly level so it doesn't "rock" when you use it.

Phase 3: Preparation (The "Deep Clean")

1. Strip the Grit: Boot scrapers are often covered in decades of old paint, caked-on mud, and—most importantly—road salt. Salt causes "porosity" (bubbles) in your weld. Use a wire wheel until the metal is bright and shiny.
2. The V-Groove: The "blade" of the scraper is usually 1/4" or 3/8" thick. Grind a "V" into the joint where it snapped. If you just weld the surface, the leverage of a heavy boot will snap it off again within a week.
3. Check the "Tang": If the scraper is the type that is pushed into the dirt, make sure the "tangs" (the legs) are straight. If they are bent, the scraper will never sit flat.

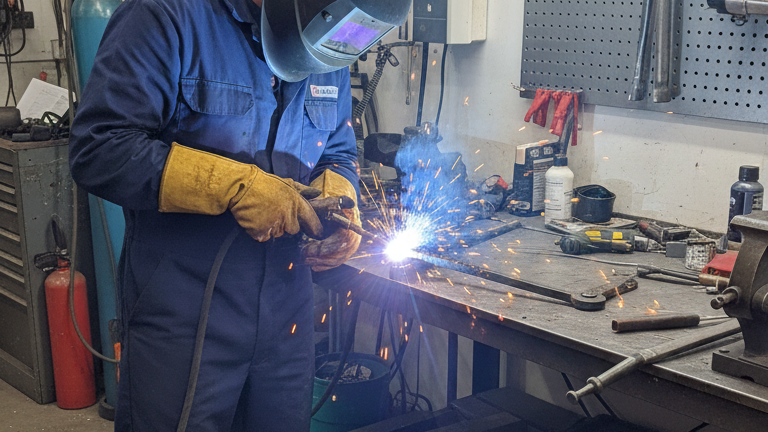

Phase 4: The Execution (The Heavy-Duty Fix)

1. The Level Tack: Clamp the vertical post in a vise. Position the blade and place a small tack weld on the underside. Use your square to make sure it's 90 degree before finishing.
2. The "Fillet" Weld: Run a bead along the corner where the blade meets the post. On a boot scraper, you want a "heavy" weld. Don't worry about making it look delicate; strength is the priority.
3. Reinforce the Base: If the scraper snapped at the ground level (due to rust), weld a small "scab plate" (a piece of 1/8" flat bar) across the break to give it extra surface area.

Phase 5: Making it Weather-Proof

1. The "Safety Grind": Use a flap disc to smooth the top edge of the blade. It should be thin enough to scrape mud, but not so sharp that it cuts into the leather soles of expensive boots.
2. De-Burr the Corners: Ensure the corners of the blade are rounded off so they don't catch on trousers or shoelaces.
3. Extreme Protection: Boot scrapers live in the worst conditions (water, salt, and friction).
• Use a Zinc-rich primer.
• Finish with a Hammered Black Enamel. This paint is thick and hides the texture of the repair perfectly.
