Winter Warrior: How to Repair a Snow Shovel Leading Edge by Welding

There is nothing more frustrating than a snow shovel that "catches" on every crack in the sidewalk because the metal leading edge has curled, cracked, or snapped. Whether you have a heavy-duty pusher or a commercial-grade steel scoop, that bottom edge takes the brunt of the friction against concrete and ice.

If your shovel’s edge is failing, don’t head to the hardware store yet. A quick welding repair can not only fix the break but actually make the blade harder and more efficient at "scraping to the bone."

Step 1: Determine the Material

Before you start, you must identify the metal on the "wear strip" or the blade itself:

• Steel: Most common on heavy-duty shovels. It’s magnetic and easy to weld.
• Aluminum: Common on lightweight scoops. It’s non-magnetic and requires a TIG welder or a MIG with a spool gun.
• Stainless Steel: Often found on high-end salt-resistant shovels. It's barely magnetic and needs stainless filler wire.

Note: If your shovel is 100% plastic with no metal strip, it cannot be welded with a metal welder. This guide focuses on metal leading edges.

Step 2: Gather Your Tools

• Welder: A MIG welder is best for the thin sheet metal found on shovels.
• Angle Grinder: Use a flap disc (60 or 80 grit) for cleaning and sharpening.
• C-Clamps or Vice Grips: Essential for flattening curled metal against a backup bar.
• Backup Bar: A thick piece of scrap steel to act as a heat sink and a flat surface to clamp against.

Step 3: Safety Concerns

• Thin Metal Warning: Shovel edges are thin. It is incredibly easy to "blow through" the metal. Keep your heat settings low.
• Galvanized Fumes: Many shovel strips are galvanized. Grind off the coating until the metal is shiny to avoid inhaling toxic zinc fumes.
• Sharp Edges: Once you grind a shovel edge, it becomes a literal blade. Wear heavy leather gloves at all times.

Step 4: Preparation

1. Flatten the Edge: Use a hammer and a flat steel block (like an anvil or a heavy bench) to pound out any curls or "smiles" in the leading edge.
2. Clean to "White Metal": Use your grinder to remove all rust, salt crust, and paint. You need a 100% clean surface for the weld to take hold.
3. Clamp it Flat: If the edge is cracked, clamp it tightly to your backup bar. This keeps the metal from warping while you weld.

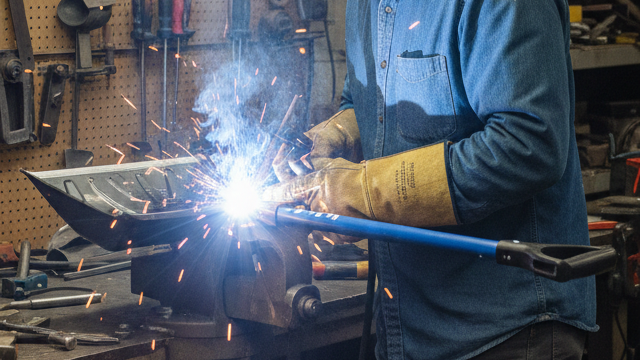

Step 5: How to Do It (The Easy Way)

• Tack and Stitch: Do not try to run a long bead across the edge. You will warp the shovel into a potato chip shape. Instead, place a small "tack" every inch.
• The "Scab" Plate: If the edge is worn thin, weld a thin strip of $1/8$-inch flat bar across the bottom. This acts as a "wear plate" that will take the abuse so the main blade doesn't have to.
• Pulse Welding: Pull the trigger for half a second, let it cool for a second, and repeat. This "pulse" method prevents the thin sheet metal from melting away.

Step 6: Make it Beautiful (and Sharp)

1. Grind it Flush: Use your flap disc to grind the weld beads down until they are smooth. You want the snow to slide over the repair without sticking.
2. The "Scraper" Edge: While you have the grinder out, bevel the bottom edge of the shovel at a 45-degree angle. This creates a sharp "chisel" that will pop ice off the driveway much easier.
3. The Finish: Use a Cold Galvanizing Spray or a "Slip" paint (like a graphite-based spray). This prevents rust from salt exposure and stops wet snow from sticking to the repair.
