Maximum Security: How to Reinforce a Squat Rack by Welding

When you are under a loaded barbell, the last thing you should be thinking about is the integrity of your equipment. Squat racks—especially budget-friendly or older models—can sometimes develop "sway" or show stress fractures at the bolt holes.

Reinforcing your squat rack via welding turns a standard piece of equipment into a "tank." By adding structural gussets and permanent joints, you eliminate the wobbling that leads to metal fatigue, ensuring your gym is a safe place to hit a new personal best.

Step 1: Determine the Material

Most home and commercial gym racks are made of ASTM A36 Mild Steel square tubing.

• The Gauge Check: Home racks are typically 14-gauge ($5/64$"), while commercial "beast" racks are 11-gauge ($1/8$").
• The Coating: Almost all racks are powder-coated. This is much thicker and tougher than standard spray paint, requiring aggressive grinding to remove.

Step 2: Gather Your Tools

• Welder: A MIG welder with 75/25 shielding gas is the top choice for clean, deep-penetrating welds on tubing.
• Angle Grinder: You will need a wire cup brush and a flap disc (60 grit) to chew through the powder coating.
• Steel Plates/Gussets: Purchase pre-cut $3/16$" or $1/4$" steel triangular gussets to bridge the corners.
• C-Clamps: To pull the uprights into a perfect 90-degree "plumb" position.

Step 3: Safety Concerns

• Remove the Pads and Pins: Strip the rack of all J-cups, safety bars, and plastic end-caps.
• Powder Coating Fumes: Burning powder coating creates thick, black, toxic smoke. Always grind back to bare metal (at least 1 inch from the weld) and wear a respirator.
• Fire Safety: If your gym has rubber "stall mats" or carpet, move the rack to the garage floor or driveway. Sparks will melt and ignite rubber flooring instantly.

Step 4: Preparation

1. Strip to "White Metal": Use your flap disc until you see shiny, silver steel. If there is a hint of black powder coating left, your weld will bubble and fail.
2. Square the Uprights: Even if the rack is bolted, check it with a level. Use your clamps to hold the uprights perfectly vertical before you start welding.
3. Clean the Inside: If you are welding near an open tube end, use a wire brush to clean the inside edge to ensure the weld "wraps" around the thickness of the metal.

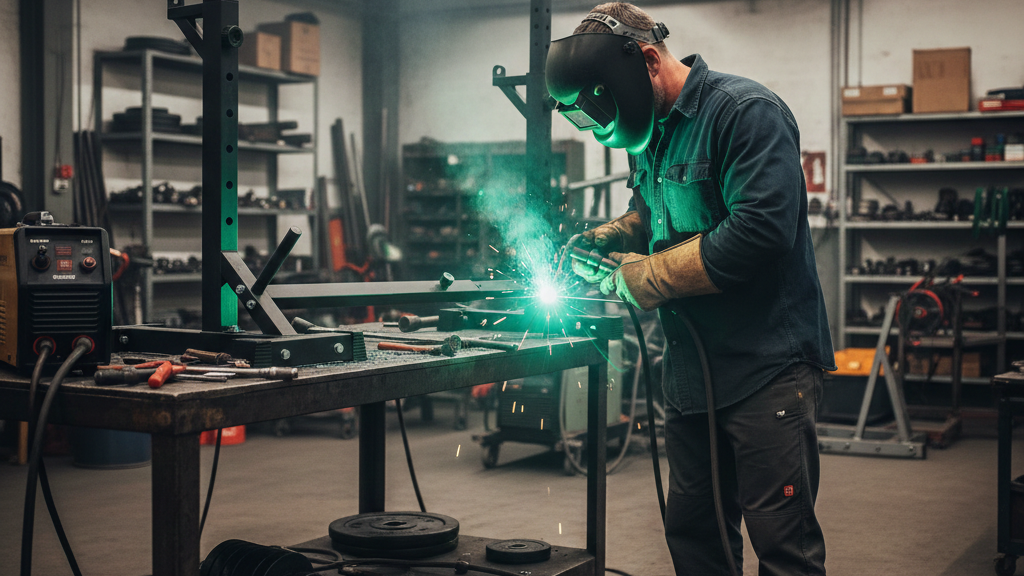

Step 5: How to Do It (The Easy Way)

• The Gusset Technique: The best way to reinforce a rack is to weld a triangular plate into the corners where the upright meets the base.
• Tack All Four Corners: Place a heavy tack on each corner of your reinforcement plate. Check the rack for squareness one last time.
• Stitch Welding: To prevent the thin-walled tubing from warping (which would make the rack "walk" or wobble), weld in 1-inch increments. Weld one side, let it cool, then move to the opposite side.
• Avoid the Bolt Holes: If your rack is a "bolt-together" model, weld around the flange, but try not to weld the bolts themselves. This allows you to still disassemble it if you move, while the welded flange provides the stability.

Step 6: Make it Beautiful

1. Level the Beads: Use your flap disc to smooth out the weld. On a squat rack, strength is beauty. You don't need to grind the weld flat; just smooth the surface so it doesn't have sharp edges.
2. Acetone Wipe: Clean the new metal thoroughly to remove skin oils and grinding dust.
3. The Finish: Use a "Hammered Finish" or "Chassis Black" spray paint. These are designed to be impact-resistant and will match the rugged look of gym equipment perfectly.
