Hauled Tight: How to Repair Truck Bed Tie-Downs by Welding

A truck is only as useful as your ability to secure a load. Over time, heavy ratcheting, shifting cargo, and exposure to the elements can cause factory tie-down points to bend, crack, or even tear away from the bed.

Repairing these is a high-stakes job—if a tie-down fails on the highway, the results can be catastrophic. Here is how to weld-repair your truck bed tie-downs so they are stronger than the day they rolled off the assembly line.

Phase 1: Determine Your Material

Before you strike an arc on your vehicle, you must know what you are welding:

• Steel Bed & Tie-Downs: Most older or heavy-duty trucks use steel. This is easy to weld with standard equipment.
• Aluminum Bed: Many modern trucks (like newer Ford F-150s) use aluminum. Warning: You cannot weld steel tie-downs to an aluminum bed. You must use a TIG welder and aluminum-specific filler if the bed itself is aluminum.
• Factory Coating: Tie-downs are often galvanized or powder-coated to prevent rust.

Phase 2: The Repair Toolkit

Because these are safety-critical parts, we need maximum strength.

• Welder: A MIG welder with .035" wire and shielding gas is excellent for clean, deep penetration. If working outdoors, a Stick welder with 7018 rods provides the highest structural integrity.
• Angle Grinder: Essential for stripping paint and "V-grooving" the base metal.
• Reinforcement Plate: A "backing plate" or "scab plate" (3/16" or 1/4" steel) to spread the load across a larger area of the truck bed.
• Fire Safety: Welding blankets to protect the truck's paint and a fire extinguisher nearby.

Phase 3: Preparation (Protecting the Vehicle)

1. Disconnect the Battery: Crucial Step. Welding sends high-voltage currents through the frame, which can fry your truck’s sensitive electronics (ECU). Always disconnect the negative battery terminal first.
2. Clear the Area: Check under the bed. Ensure there are no fuel lines, brake lines, or electrical harnesses directly behind where you are welding.
3. Strip to Shine: Grind away all paint, bed liner (Herculiner/Line-X), and rust. You need 100% clean metal for a structural weld.
4. The Reinforcement Plan: If the sheet metal of the bed is "torn," don't just weld the tear. Place a larger steel plate over the area and weld the tie-down to that plate. This prevents the tie-down from "pulling through" the thin bed metal again.

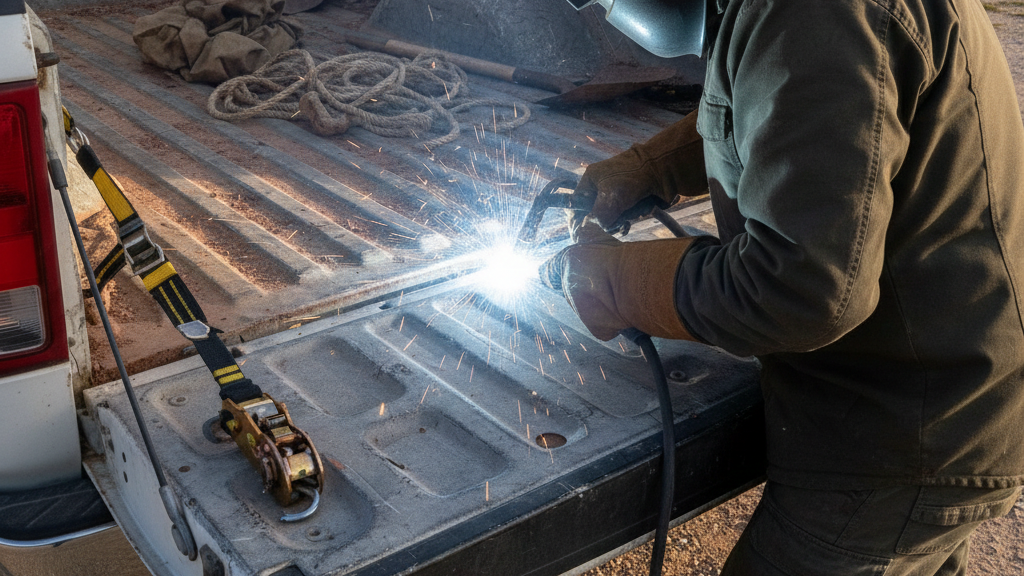

Phase 4: The Execution (Structural Welding)

1. Tack & Align: Position the tie-down. If you are using a D-ring, ensure the bracket is square to the bed floor or wall.
2. Deep Penetration: Use a slightly higher heat setting than you think you need. You want the weld to "sink" into both the tie-down and the reinforcement plate.
3. The Wrap-Around: If welding a loop or a bracket, don't stop the weld at the corners. Carry the weld bead around the corner to prevent "stress risers" where a crack could start.
4. Cooling: Do not use water to cool the weld; let it air-cool to prevent the metal from becoming brittle.

Phase 5: Making it Beautiful

1. Clean the Slag: Use a wire brush to remove any soot or spatter.
2. Smooth but Strong: You can lightly grind the top of the weld for aesthetics, but do not grind it flat. For tie-downs, you want the full thickness of the weld bead for strength.
3. Seal it Up: Truck beds are rust magnets. Hit the repair with a zinc-rich primer immediately. Once dry, apply a coat of color-matched paint or a dab of "roll-on" bed liner to match the rest of the truck.
